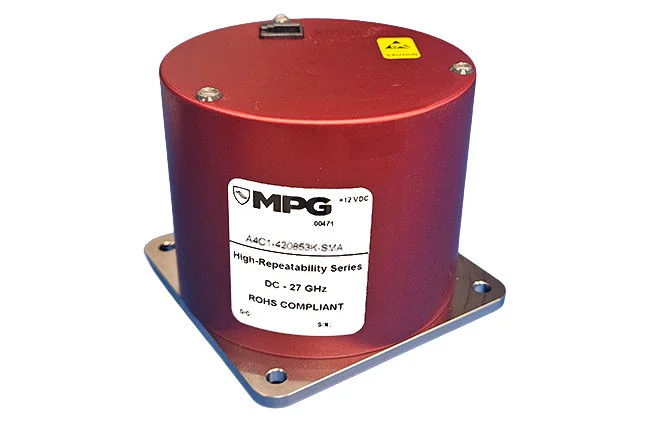

High Repeatability Coaxial


MPG_High_Repeatability_Switches

Overview

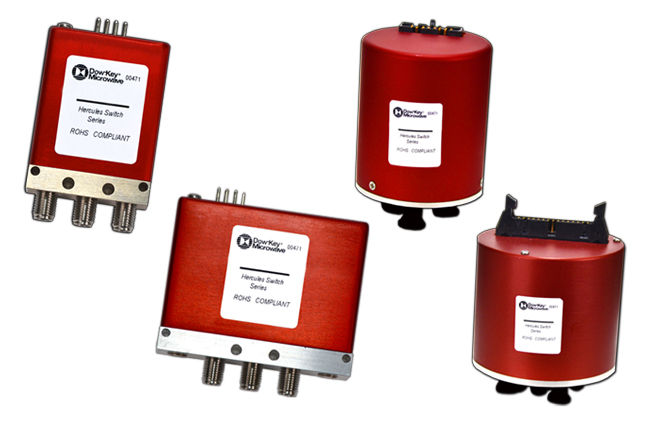

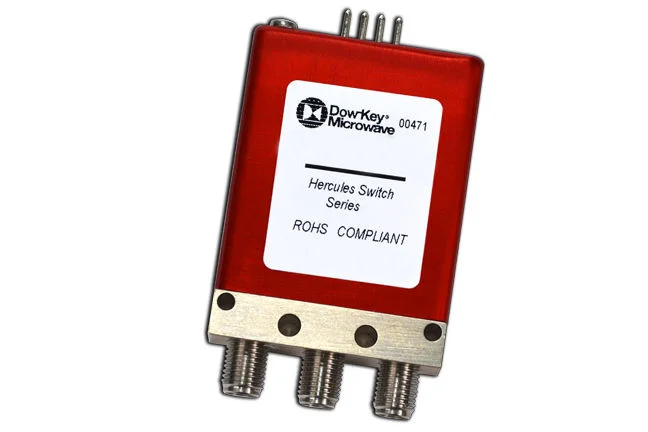

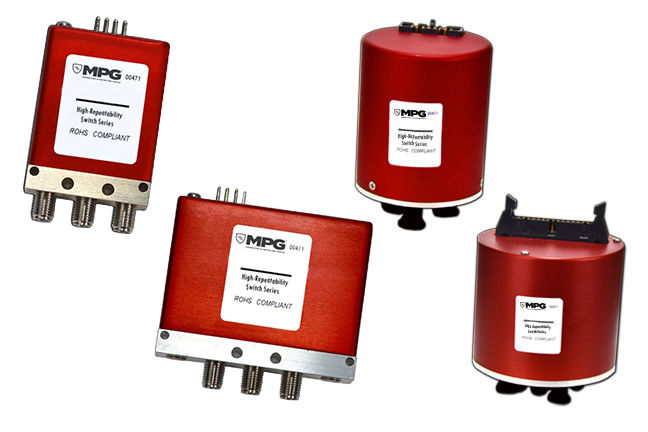

High Repeatability Switches are designed to stand up to rigorous requirements over an extended lifecycle. Our Reliant line of High Repeatability Switches meets these basic requirements with a dependable and economical switching solution, backed by decades of design and manufacturing innovation.

Reliant High Repeatability Switches can operate at temperatures below 25°C, up to 15,000 feet in altitude, and can also be stored up to 50,000 feet without performance degradation. Control can be instituted by applying ground to close the desired port, via TTL logic (by applying +5vdc to close a port or +0Vdc to open a port) or CANbus (to use with controller boards). 

At MPG, we help customers meet specifications where insertion loss repeatability and switch life are critical, with an economically priced High Repeatability Switch that can be purpose-built to the following specifications:

Find Product Catalog

Specifications

Configurations:
Single pole double throw (SPDT), single pole double throw terminated and SP6T terminated in the following modes: latching, normally open terminated, latching terminated, self cut off.

Frequency:
Our High Repeatability Switches route RF signals over a bandwidth from DC-1 to 26.5 GHz.

Features:
Our High Repeatability Switches support maximum VSWR 1.15 to 1.80, with minimum isolation ranges from 55 dB to 85 dB, and a maximum insertion loss from .2 dB to 4 dB.

High Repeatability Switches can be designed to meet customer specifications across the following ranges:

Operating Voltage:
12-24 Vdc

Switching time:
15 ms max.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Offering durability at an economical cost, Dow Key’s High Repeatability Switch is a good fit for multiple markets, including radar, automated test equipment (ATE) communications

High Repeatability Switches

HighRepeat_R461

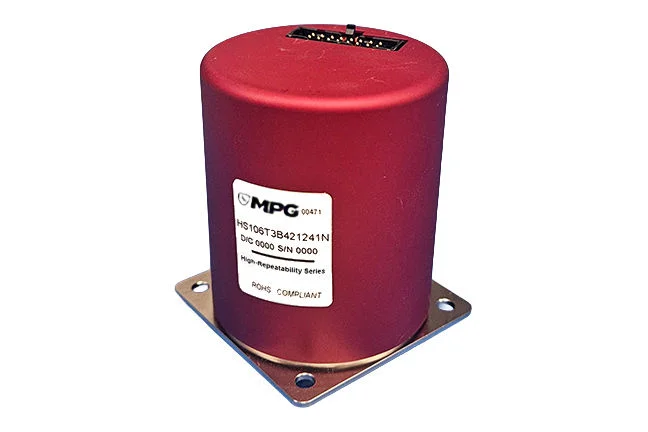

Single Pole Multiple Throw (SPnT)

Performance:
High Repeatability Switches support maximum VSWR 1.15 to 1.80, with minimum isolation ranges from 55 dB to 85 dB, and a maximum insertion loss from 0.03 dB up to 5 million cycles.

Frequency:
High Repeatability Switches route RF signals over a bandwidth from DC-1 to 26.5 GHz.

Find Products Learn More

R401K

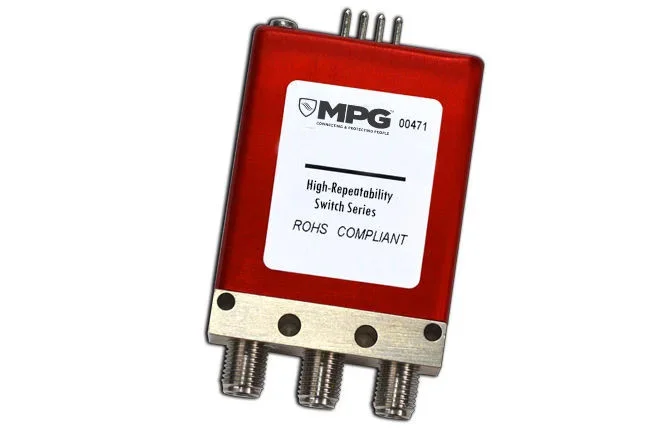

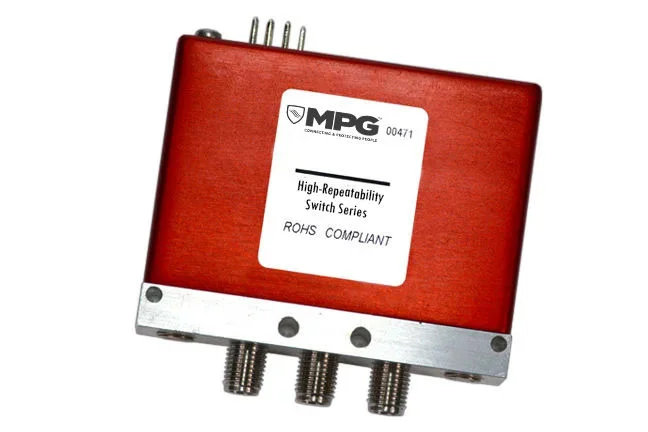

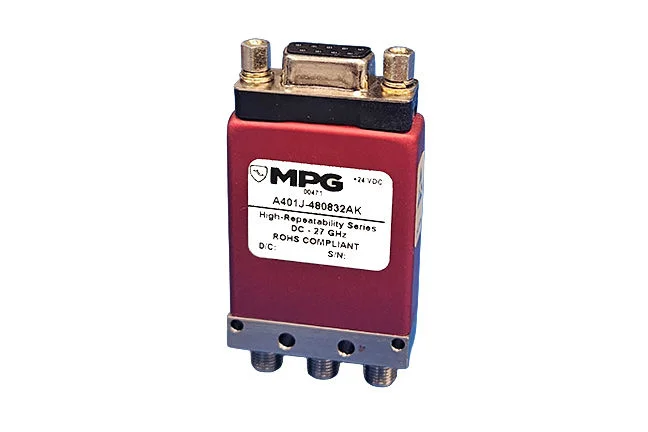

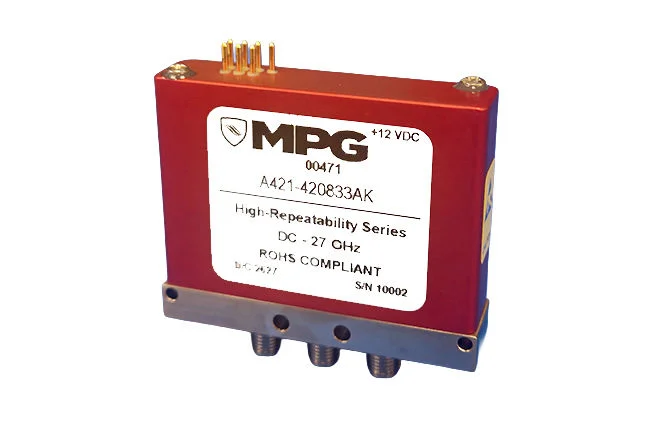

Single Pole Double Throw (SPDT)

Performance:
Our High Repeatability Switches support maximum VSWR 1.15 to 1.80, with minimum isolation ranges from 55 dB to 85 dB, and a maximum insertion loss from 0.03 dB up to 10 million cycles.

Frequency:
High Repeatability Switches route RF signals over a bandwidth from DC-1 to 26.5 GHz.

Find Products Learn More
