Receivers

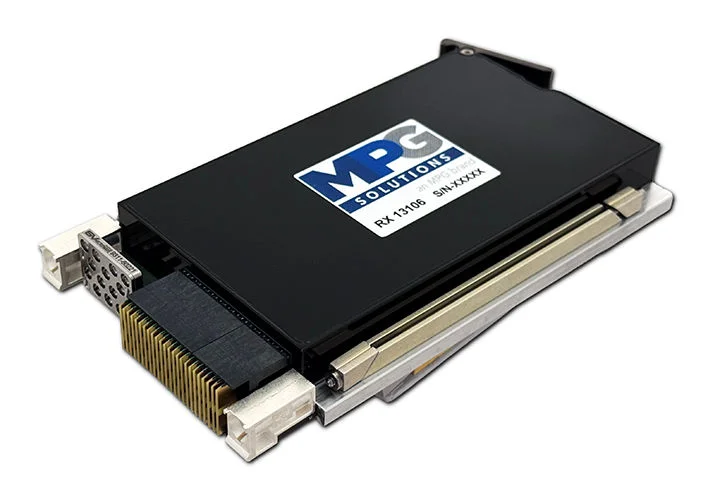

MPG Solutions® delivers leading edge single channel microwave narrowband receivers, covering 500 MHz to 18 GHz RF Input, with options for higher bands.
Overview
Despite the ultra compact form factor, the receiver attains exceptional high performance characteristics, suitable for advanced ELINT / SIGINT/ RESM operations. The design utilises MPG SWaP technological advances to maintain performance in an ultra compact footprint.
Benefits
Built into MPG Solutions® EW receivers, better sensitivity and a means of operating in a complex signal environment offering a Higher Point of Intercept (POI):
- Frequency range of 2 to 18 GHz
- A frequency resolution of 3.93 MHz with pulse capability of 50nS up to Continous Wave (CW)
- Significant dynamic range of the receiver greater than -70 to +10 dBm
- Multiple and simultaneous signal capabiltiies and full jammer immunity
Receivers deliver exceptional high performance and are suitable for advanced ELINT/SIGINT and RESM operations. Ultra-fast switching speeds maintain pace with the most demanding platform requirements.
Problems Solved
The receiver consists of three highly integrated main building blocks:
FRONT END PRE-SELECTOR:
A high performance ultra compact preselector provides exceptional levels of broadband filtering utilising our thin-film filtering technology.
LOCAL OSCILLATOR:
The integrated LO utilises a novel concept to achieve an impressive small size, with exceptional levels of performance — DDS technology, and micro-miniature proprietary microwave tuneable filtering technology being at the heart of the concept.
DOWN CONVERTER:
The down converter architecture and frequency plan has been carefully formulated to maximise SFDR whilst still offering a wide IBW. Despite the levels of integration, flexibility is offered in final IF output frequency and bandwidth to suite almost any system level implementation.
Markets & Applications
MPG Sales
Connecting & Protecting People®
MPG Solutions® provides expert support throughout all of the phases in our customer experience, from quoting the perfect solution to continued post-delivery support and extended warranty coverage. Let's take on your latest design challenge together.
Benefits
MODULAR
SWaP
CUSTOM DESIGN
Technical Questions?
Our team is composed of highly-technical engineers empowered to quickly assist you in identifying a high-performance RF/microwave solutions. Contact our engineers to see how we can solve your mission-critical challenges.
Special Processes & Technologies
Engineering:
- Multiple RF Screen Rooms
- Full Complement of Test Equipment (DC – 3GHz) including Network, Spectrum, and Modulation Analyzers; Signal and Function Generators
- Eagleware GENESYS™RF/Microwave Design Tool together with SPECTRASYS™, an RF architecture simulator and EMPOWER/ML™, a multi-level planar 3D EM simulator
- MathCAD13 for circuit simulation and analysis
- Mentor Graphics DxDesigner Schematic Capture & Circuit Board Layout Tool
- Autodesk Inventor® Series including:
1.Autodesk Inventor® software for 2D/3D design and documentation
2.AutoCAD® Mechanical for productive 2D drawing and detailing
3.Autodesk® Vault to synchronize your design efforts
Environmental Testing:
- Custom developed test fixtures for automated testing of customer units
- Temperature/Humidity chambers capable of thermal cycling units under test from -73°C to +175°C. Pole/Zero currently has multiple thermal chambers including the TestEquity 115, TestEquity 1007C, Russells F-18, Russells RB-32 and Russells RDV-32 chambers
- MB Dynamics C10E, LDS V830 and V850 Electrodynamic vibration tables for shock, random, & sinusoidal testing cycles
