Band Reject Filters

BSC, K&L Microwave®, and Pole/Zero® fixed and tunable band reject filters.

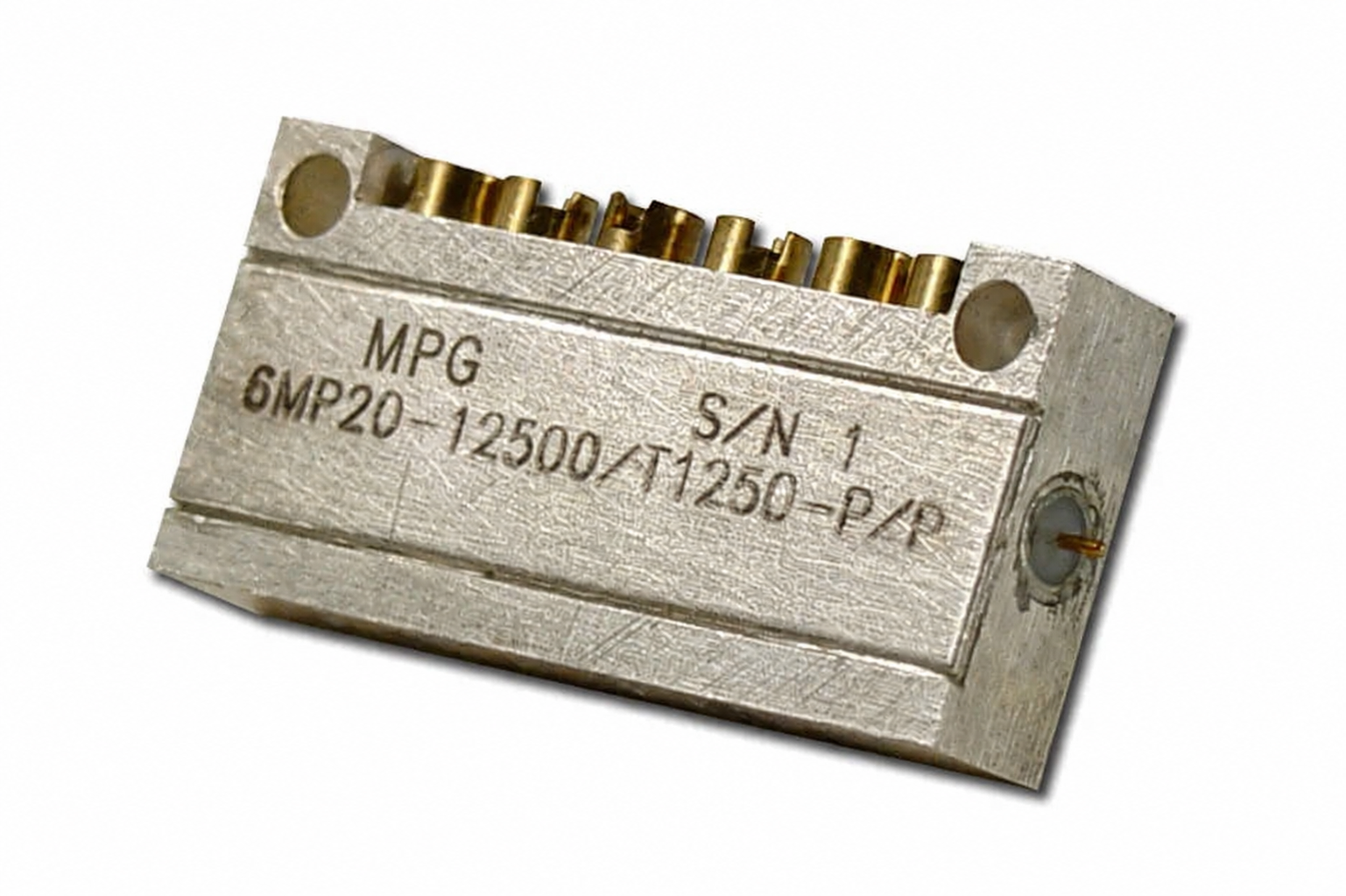

MPG_KLM_FL_BP_FIX_CB_MUL_6MP20-12500-T1250-P-P

Overview

With Band Reject Filters, also known as a Band Stop Filters, frequencies are attenuated in the stop band and passed outside these parameters. Notch Filters also fall under the category of Band Stop Filters, as they reject frequencies, but in a highly selective, high-Q form.

All Band Reject Filters or Band Stop Filters made by Microwave Products Group, including Notch Filters, are available as a wideband or narrowband reject filter and can be customized to user specifications. For example, Notch Filters are most commonly applied to applications where it is necessary to attenuate a single frequency. However, utilizing our cross-industry experience, MPG can customize Notch Filters to reject two very narrow band signals while monitoring broadband for out-of-band spurious or harmonic radiations.

MPG’s experienced engineers work individually with client engineers to determine the best filter types for each application, covering a wide range of frequencies and bandwidths.

Find Products Catalog



Band Reject Filters

MPG_KLM_FL_BR_FIX_CA_MUL_5N45-4265-H1600-0-0
MPG_KLM_FL_BR_TUN_CA_MUL_3TNF-3000-4000-N-N

Features & Specifications

Band Reject Filter frequency: VHF and UHF from 800 KHz to 18 GHz (L band, S band, C band, X band, Ku band). Band Reject Filter (Band Stop Filter) features: Band Reject Filters are available as fixed and tunable, narrowband filters or wideband filters, supporting bandwidths from 1% to 200%, in configurations and topologies.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because MPG Band Reject Filters are custom-fit to end-user specifications, they are applicable to a wide range of use cases, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Explore Products And Solutions By:

Search & Design Tools

Product Finder

Browse products by type, class, family and operating frequency.
Go To Product Finder

Filter Wizard

Use to search or build K&L Microwave® filters.
Go To Filter Wizard

QuEST Filter Tool

Use to build custom BSC filters.
Go To QuEST Filter Tool

Special Processes And Manufacturing

MPG’s engineers design and manufacture a highly dependable product, utilizing in-house machine shops equipped with complex technology and machinery. Customized to meet the tailored needs of each and every client, our Band Reject Filters (Band Stop Filters) and Notch Filters can be found in use across a wide range of industries, including telecommunications and aerospace, where durable long-lasting filters are required.
